China Hunan Xunke Xuguang Technology Co., Ltd. Company Cases

A stirring tank with heat exchanger project for a reactor in a Korean factory

Reactor heating stirring tank in a Korean factory Heating temperature: 100 degrees (initial temperature: room temperature) Kettle volume: 8m³ Heating time: 1.5~2h Heating solution volume: 5.7m³ It has been running stably for many years

Latest company case about A stirring tank with heat exchanger project for a reactor in a Korean factory

Circulating heating and heat exchange system for the Calcium Fluoride deep processing production line of chemical plant in Taiwan

Medium: corrosive inorganic salts and inorganic acids Heating medium: hot water Tube material: PFA Shell material: ANSI 304, carbon steel spray-lined with ETFE Heating cycle time: 1h Transmission medium pipeline material: carbon steel lined with PTFE（thickness 10mm） The system has extremely strong corrosion resistance and high stability, and has received very good customer reviews

Latest company case about Circulating heating and heat exchange system for the Calcium Fluoride deep processing production line of chemical plant in Taiwan

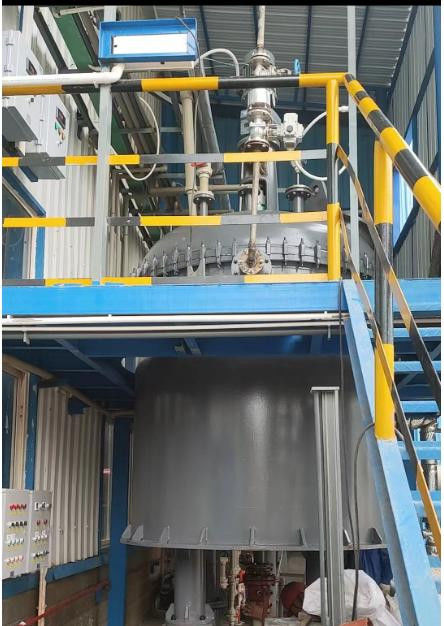

Naphthenic acid organic heating stirring tank

Storage tank capacity: 5000L Initial temperature: room temperature (according to 25-30℃) Initial heating temperature: 98-100℃℃ Initial heating time: 3H Continuous production flow: 25L/min (1.5m/h) Continuous working temperature control 95-100℃ Medium: organic solvent, density 0.9kg/L, specific heat capacity 2.1-2.3 kJ/(kg·℃℃), containing hydrochloric acid concentration 0-3.0mol/L or liquid alkali concentration 0-3.0mol/L. The equipment has the ability to withstand 150°C temperature shock.

Latest company case about Naphthenic acid organic heating stirring tank

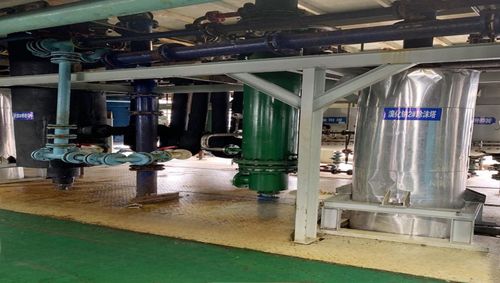

Pharmaceutical enterprise tail gas condenser

TThe sodium bromide defoamer tower of a pharmaceutical company originally used a graphite condenser to condense and recover tail gas. During operation, the graphite condenser produced slag, which affected the purity of the material and failed to meet the GMP standard requirements. The owner modified the graphite condenser and used our company's perfluorinated tube condenser. After the modification, the system operated stably, the heat exchange efficiency was greatly improved, and the condensation effect reached the expected effect.

Latest company case about Pharmaceutical enterprise tail gas condenser

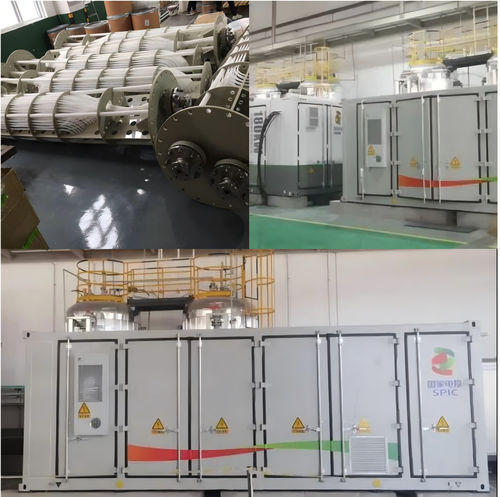

Iron-chromium flow battery tank heating/cooling system

Design parameters of heat source and accessory equipment Rated heating capacity: 25kW Rated cooling capacity: 20kW Heating COP ≥ 2.5 Cooling COP ≥ 2.5 Ambient operating temperature: -25℃ to 43℃ Hot water outlet temperature: ≥ 60℃ Insulation requirements: Under voltage of 1000V, the overall resistance of the heat source system skid is ≥ 550MΩ.

Latest company case about Iron-chromium flow battery tank heating/cooling system

Tail gas condensation in a pharmaceutical factory and workshop (2000L)

Design parameters: 1680KG of toluene, weight of material ((R)-4-chloro-3-trimethylsilyloxybutyronitrile): 500KG. Temperature ≤90℃, vacuum degree 0.09Mpa. Advantages: The reactor of a company in Hunan volatilizes highly corrosive gases. Silicon carbide condensers were originally used for condensation and recovery. During operation, the silicon carbide condenser was damaged due to vibration, and the condenser often leaked. After the owner replaced the silicon carbide condenser with our company's perfluorinated condenser in early 2016, the condensation effect was improved. At present, the system has been running stably for more than 7 years.。

Latest company case about Tail gas condensation in a pharmaceutical factory and workshop (2000L)

Design parameters of heat exchangers and accessories

1. Material: FEP tube bundle, PPH flange; 2. Form: fluoroplastic coil heat exchanger; 3. Heat exchange area: It must meet the requirement of heating 20m³ liquid in a single tank from 20℃ to 50℃ within 48 hours, and at the same time meet the heat exchange power required for temperature maintenance after the system is in operation (temperature rise of 1℃ per hour); 4. Suitable for 2 square tanks, top flange installation, tank size length, width and height 4.6m×2.3m×2.7m; 5. Working pressure: 400kPa 6. Insulation requirements: Under the voltage of 1000V, the heat exchanger resistance is ≥550MΩ.

Latest company case about Design parameters of heat exchangers and accessories

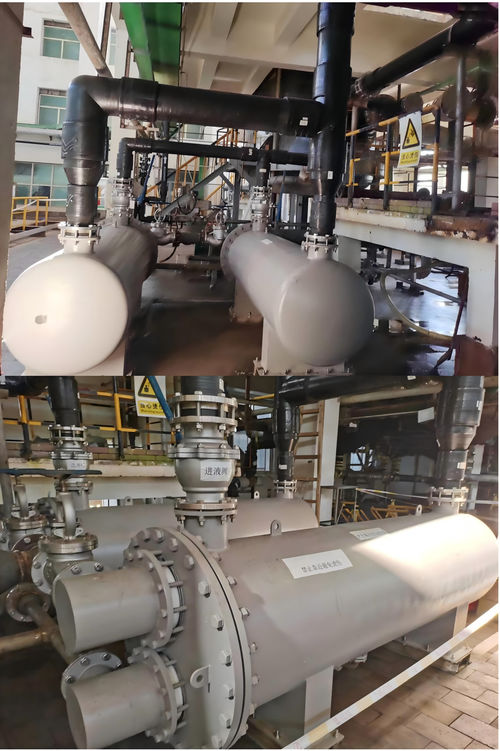

Steam Heating Heat Exchanger

Heating medium (heat source): 0.2~0.3MPa (gauge pressure) saturated steam, allowable pressure drop: 100kPa, temperature: 115~120℃; working system: continuous or intermittent operation; design scale and system calculation capacity: electrolyte flow: 2~3m³/h/unit Medium material composition: Nickel sulfate solution, including fH2SO4: ~700g/L; Cu2+: ≤1.5g/L; AS: ≤3.5g/L; Sb: ≤0.05g/L; Bi: ≤0.03g/L; Ni: ≤40 g/L; C-: ≤0.25g/L; solid content ≤30%; solution density: 1.38~1.45t/m³. Nickel sulfate liquid temperature: inlet ~50℃℃, outlet ~95℃℃ Working environment: indoor, humid, acidic corrosive gas, temperature 25~50℃; relative humidity ≤90%.

Latest company case about Steam Heating Heat Exchanger
